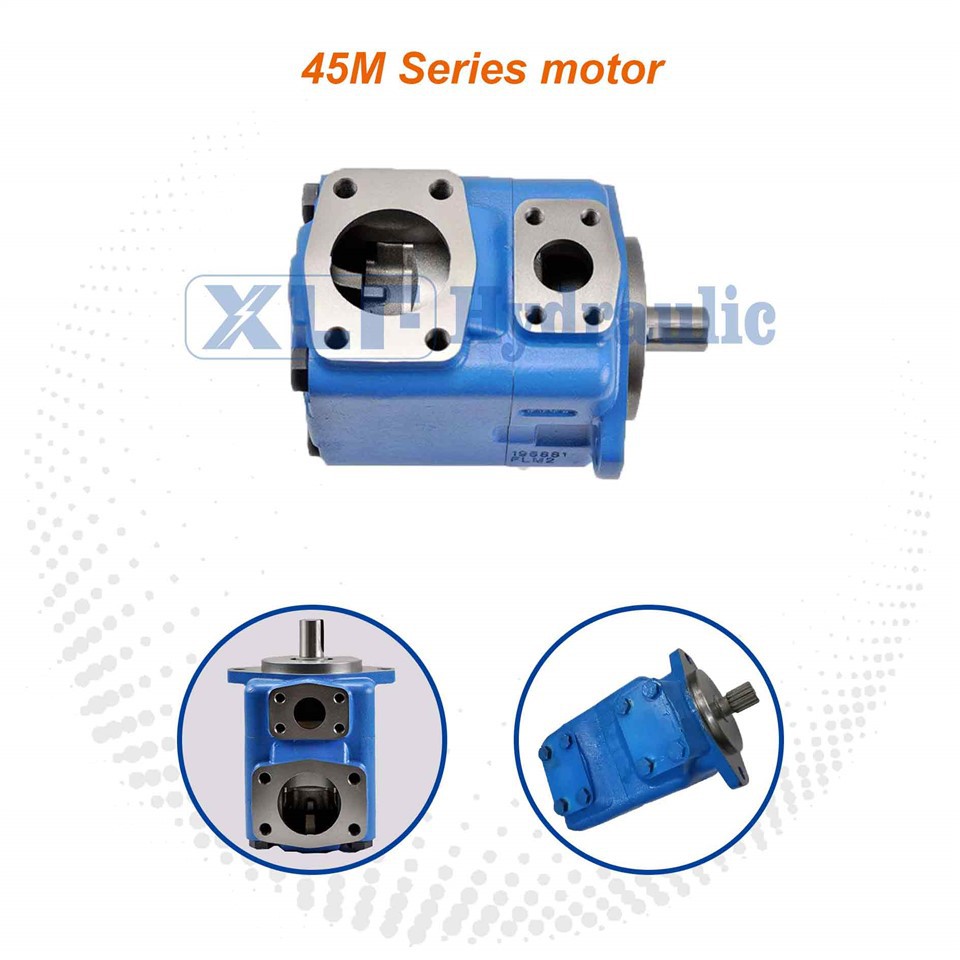

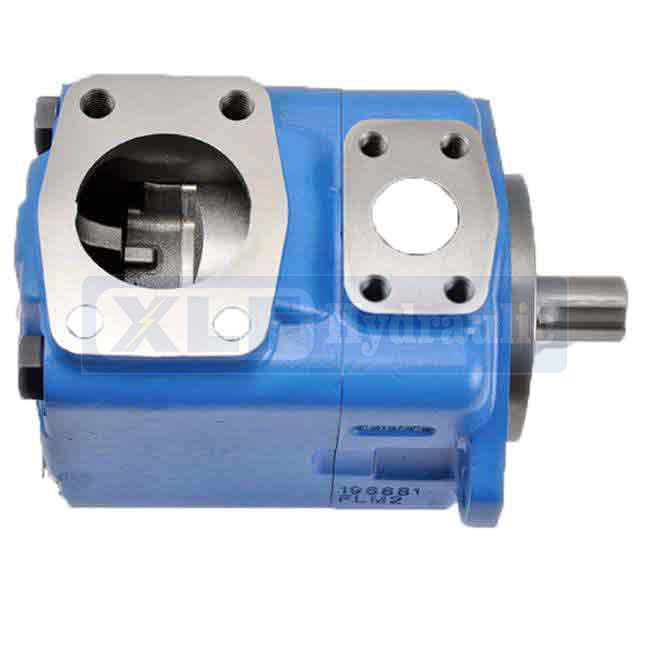

Sale Eaton Vickers 45M Hydraulic Fixed Displacement Hydraulic Motor for Crawler Excavator
Warranty:1 Year
Motor Type:Vane Motor
Displacement:8-900
Weight:12
Specification
| Series | Ring size-Nominal torque Rating (Ib.in/100psi) | Mounting fange and port connections | Shaft type | Cover position | Design number | Special suffixes |
| 25M | 42,55,65 |
A-SAE type 2- bolt mounting flange SAE 4-bolt flanged port connections |
1-Straight keyed 11-Splined |
A-Cover port opposite body port B-Cover port 90° count- erclockwise from body port C-Port connections in line D-Cover port 90° clock- wise from body port |
20 | No |
| 35M | 80,95,115 | |||||
| 45M | 130,155,185 | |||||
| 50M | 220,255,300 | 114,124 |

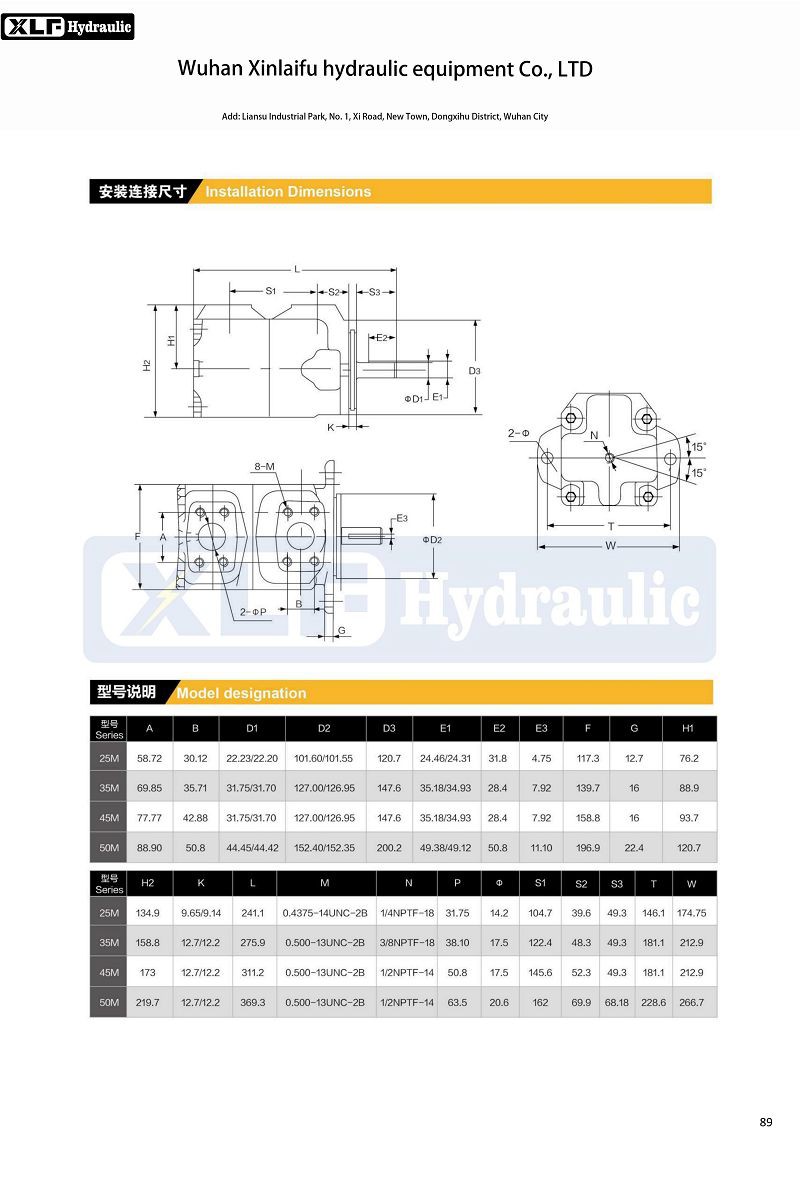

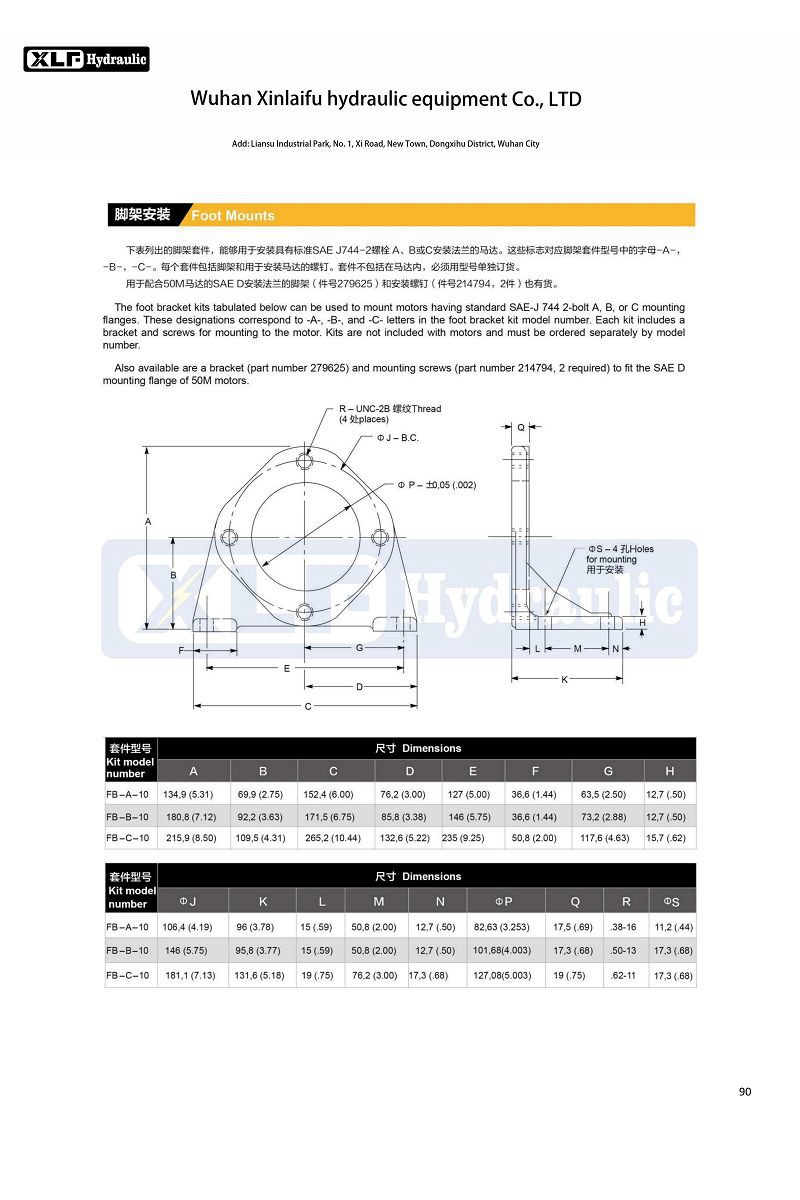

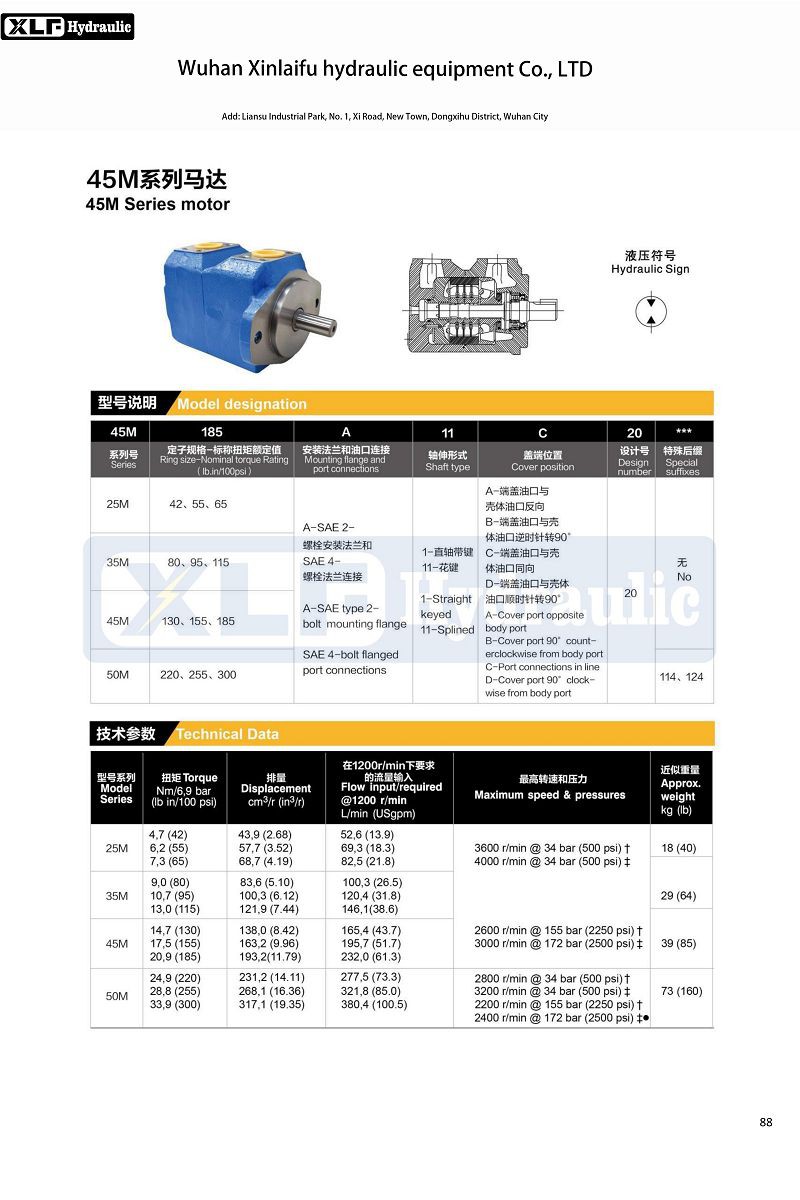

| Model Series | Torque Nm/6,9 bar (lb in/100 psi) | Displacement cm3/r (in3/r) | Flow input/required @1200 r/min L/min (USgpm) | Maximum speed & pressures |
| 25M | 4,7 (42) 6,2 (55) 7,3 (65) | 43,9 (2.68) 57,7 (3.52) 68,7 (4.19) | 52,6 (13.9) 69,3 (18.3) 82,5 (21.8) | 3600 r/min @ 34 bar (500 psi) t 4000 r/min 34 bar (500 psi)+ 2600 r/min @ 155 bar (2250 psi) t 3000 r/min @ 172 bar (2500 psi)+ |
| 35M | 9,0 (80) 10,7 (95) 13,0 (115) | 83,6 (5.10) 100,3 (6.12) 121,9 (7.44) | 100,3 (26.5) 120,4 (31.8) 146,1(38.6) | |
| 45M | 14.7 (130) 17,5 (155) 20,9 (185) | 138,0 (8.42) 163,2 (9.96) 193,2(11.79) | 165,4 (43.7) 195,7 (51.7) 232,0 (61.3) | |
| 50M | 24,9 (220) | 231,2 (14.11) 268,1 (16.36) 317,1 (19.35) | 277,5 (73.3) 321,8 (85.0) 380,4 (100.5) | 2800 r/min @ 34 bar (500 psi)t 3200 r/min @ 34 bar (500 psi) $ 2200 r/min @ 155 bar (2250 psi) t 2400 r/min 172 bar (2500 psi) + |
| 28,8 (255) 33,9 (300) |

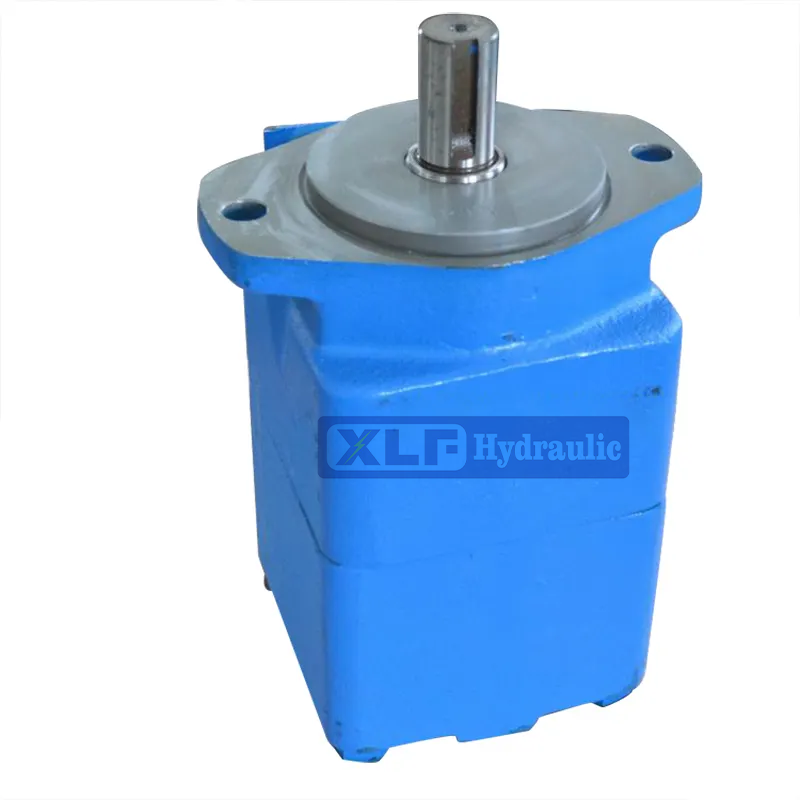

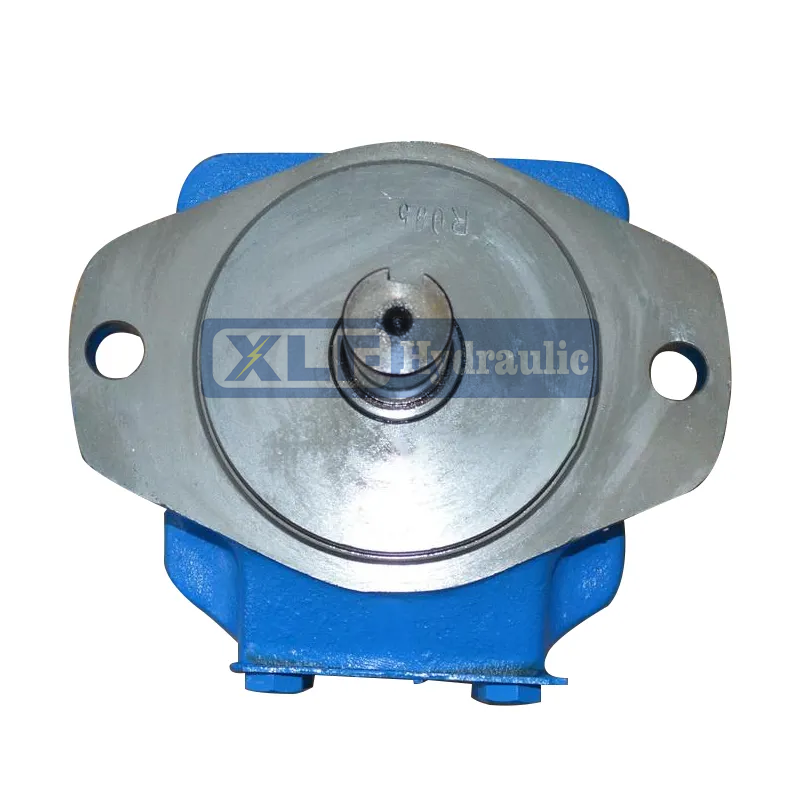

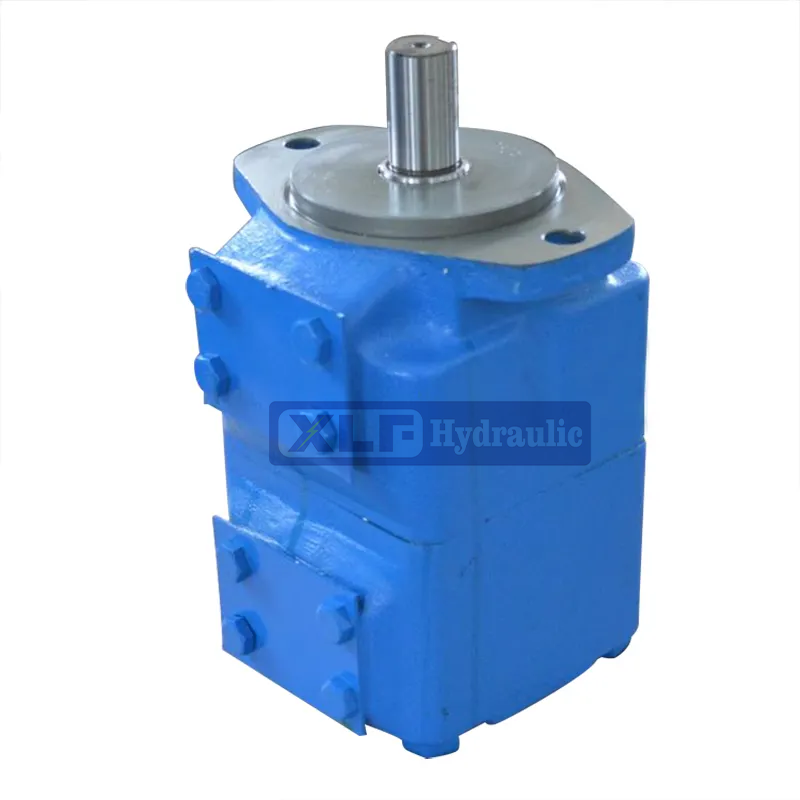

Product Description
Basic motor construction consists principally of a body, cover, drive cartridge and shaft. Rotary motion is developed in the cartridge, which principally consists of a ring, rotor, ten vanes and two pressure plates. The rotor is splined and mates with the output shaft, which is supported by a ball bearing in the body and a bushing bearing in the cover pressure plate. The vanes slide radically in the rotor slots and follow the elliptical cam contour of the ring as the rotor turns. These vanes are held against
the ring by a combination of spring and centrifugal forces.
Port connections are located in the body and cover. Direction of shaft rotation is governed by the direction of fluid flow through
these ports. Pressure is sealed from one port to the other by a Teflon sealing ring in the body on the periphery of the ring.
Drainage is ported through an external connection in the cover.
The cartridge is bolted together and can be serviced as a complete assembly. Locating pins position the ring with respect to the
pressure plates, and in like manner, two torque pins position the cartridge in the cover. The cover can be assembled in four
positions with respect to the body. Changing of the port positions is accomplished by rotating the cover and cartridge.
