Rexroth PVE Axial Variable Piston Two Piston Pump for Crawler Excavator
Nominal pressure 140bar
Maximum pressure 207 bar
Open circuit
Product technical data
XLF-PVE Axial Piston Fixed Pump Features
1. Fully interchangeable with the original brand
2. Very competitive price
3. Low noise, high efficiency, high reliability, long service life
4. Small size, high power density
5. Excellent oil absorption properties.
6. 1 year warranty
7. For engineering equipment, Marine and boating and industrial equipment, etc.
8. For axial piston pump with open loop.
9. Continuous working pressure up to 140 bar, instantaneous maximum working pressure up to 207 bar.
10. Flow proportional to drive speed and displacement and can be achieved by adjusting the variable lock Angle
11. There are constant pressure, constant power pressure, constant voltage flow and other control methods, as well as the reaction rate control
12. Drive shaft can withstand axial and radial loads
13. Sae and iso mounting flange
14. For the structure of the axis of passage and for a multi-loop system
15. Start at any time under pressure.

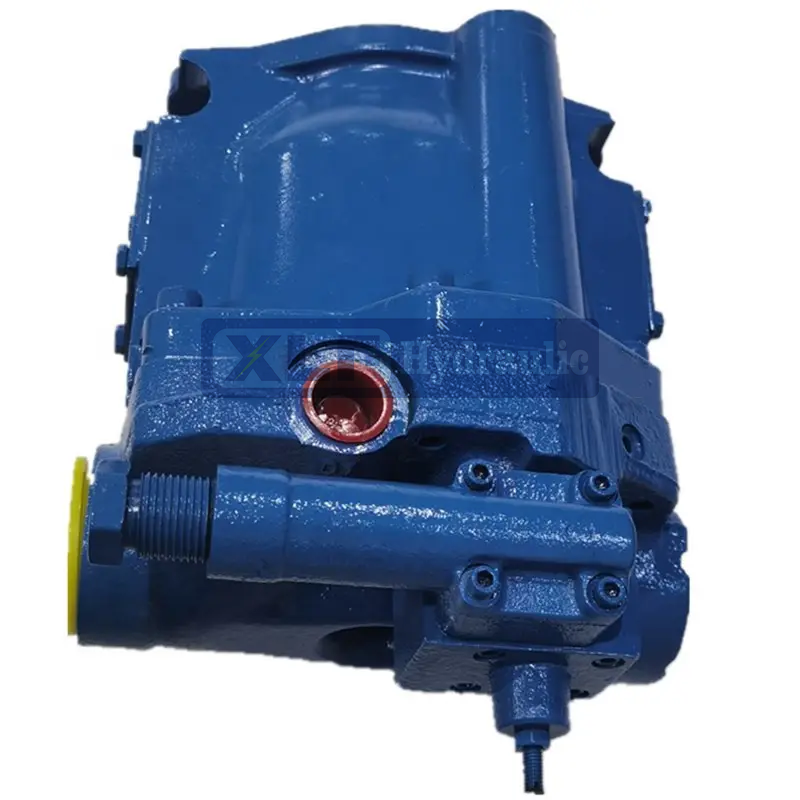

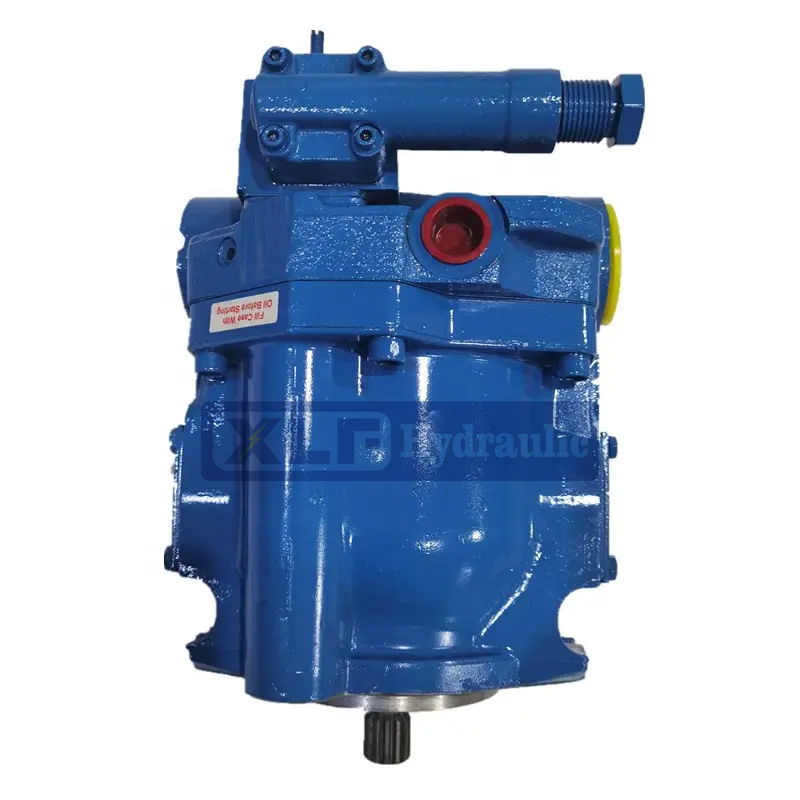

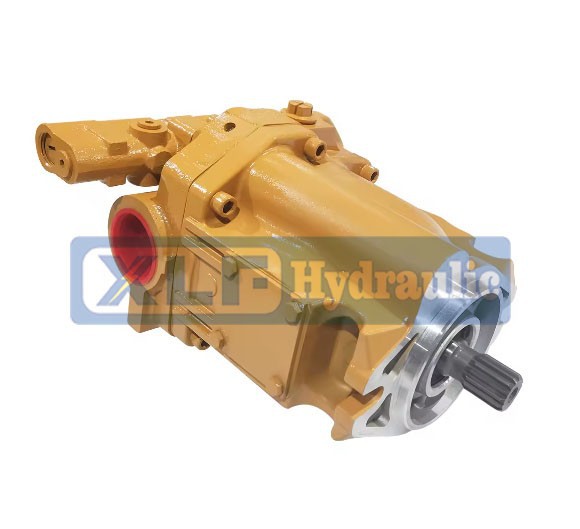

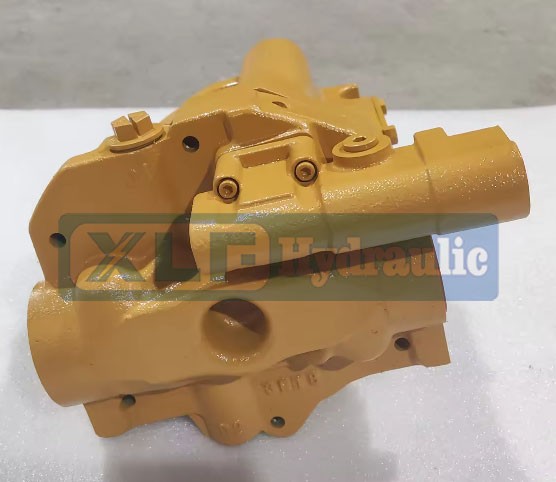

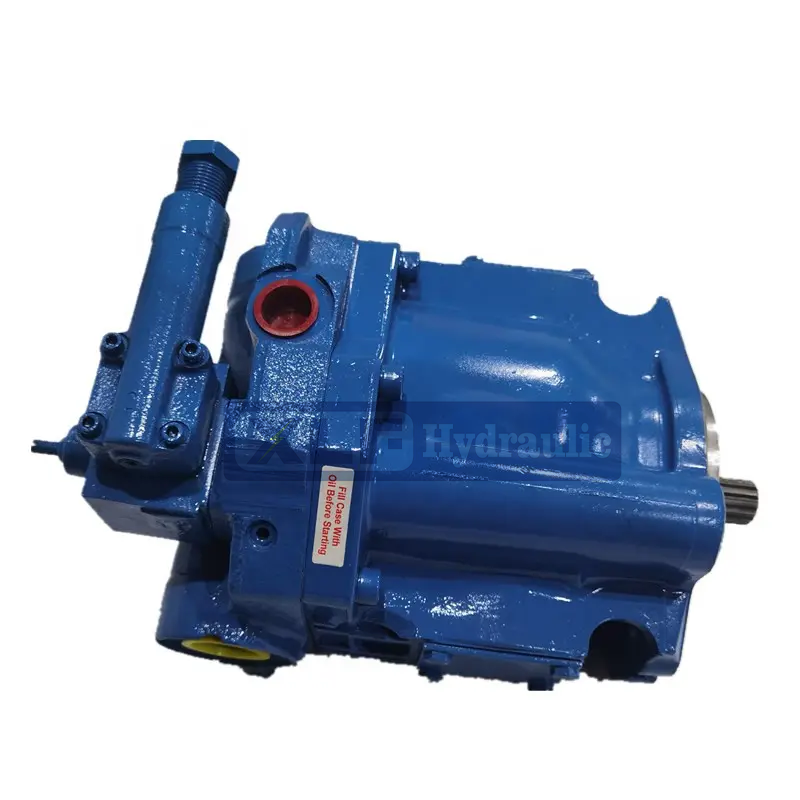

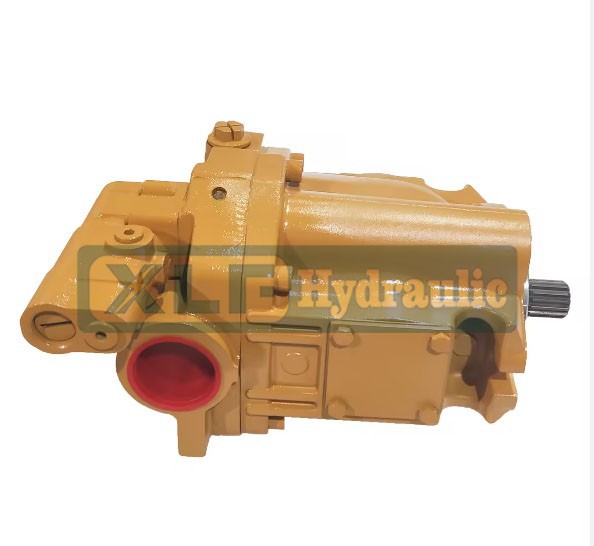

XLF-PVE Axial Piston Fixed Pump Product detail picture
XLF-PVE Axial Piston Fixed Pump Technical data
| Displacement,Speed,and | |||||
| Pressure Ratings | |||||
| Displacement cm³/r(in⊃3;/r) | Rated Input | Maximum Pressure bar (psi) | |||
| Speed | |||||
| Model Code | Shaft End Pu | mp Cover End Pu | mp(At 0 psig Inlet | )Shaft End | Coyer End |
| PVE12 | 25(1.54) |
 |
3000 |
207(3000) |
|
| PVE19 | 41 (2.50) |
2400 | 207(3000) |
||
| PVE21 | 45 (2.75) | 2400 | 186(2700) | ||
| PVE41-25V40M(mobile) | 41 (2.50) | 40 (2.44) | 2400 | 207 (3000) | 207 (3000) |
| PVE41-25V45M(mobile | 41 (2.50) | 45 (2.75) | 2400 | 207(3000) | 207 (3000) |
| PVE41-25V55M(mobile) | 41 (2.50) | 55(3.36) | 2400 | 207(3000) | 207(3000) |
| PVE41-25V67M (mobile) | 41 (2.50) | 67 (4.09) | 2400 | 207(3000) | 207 (3000) |
| PVE45-25V40M(mobile) | 45 (2.75) | 40 (2.44) | 2400 | 186(2700) | 207(3000) |
| PVE45-25V45M(mobile | 45 (2.75) | 45(2.75) | 2400 | 186(2700) | 207(3000) |
| PVE45-25V55M(mobile) | 45(2.75) | 55 (3.36) | 2400 | 186(2700) | 207(3000) |
| PVE45-25V67M (mobile) | 45 (2.75) | 67 (4.09) | 2400 | 186 (2700) | 207 (3000) |
| PVE41-25V40I(quieted) | 41 (2.50) | 40 (2.44) | 1800 | 207(3000) | 172 (2500) |
| PVE41-25V45I(quieted) | 41 (2.50) | 45 (2.75) | 1800 | 207(3000) | 172 (2500) |
| PVE41-25V55I (quieted) | 41 (2.50) | 55 (3.36) | 1800 | 207 (3000) | 172 (2500) |
| PVE41-25V67l(quieted) | 41(2.50) | 67 (4.09 | 1800 | 207(3000) | 172 (2500) |
XLF-PVE Applicable model
|
PVE19-B2R-STS9F-41-C21-12 PVE19-B2R-STS9F-41-C21VPC26B-13-387 PVE19G-B2R-STS2N-41-C16VPC19B-13-305 PVE21-B2L-MFS2F-41-C21VP15P-13-393 PVE21-B2L-SFE9F-41-UV-20-293 PVE21-B2L-STS13F-41-C20VPC17P-13-269 PVE21-B2L-STS31F-41-C19VP14P-13-248 PVE21-B2L-STS9F-41-C20VPC24B-13-390 PVE21-B2R-A9-MFS2F-41-C21VP24P-13-333 PVE21-B2R-B26-STS2F-41-C19-12 PVE21-B2R-MFE2AF-41-C16VPC21P-13-307 PVE21-B2R-MFE2AF-41-C20VPC30P-13-400 PVE21-B2R-SFE2F-41-C19VPC24B-13-213 PVE21-B2R-STE2F-41-C21VPC24B-D-13-268 PVE21-B2R-STE9F-41-C20VPC24P-13-295 PVE21-B2R-STS9F-41-C19VP11B-13 PVE19/21 RH&LH PVE35-QR122C21V172 PVE35-QIR-A13-22-C20-21 PVE47R-A13-22-CM7-21 PVE47R-1-22-C14-21 PVE000R000020B351600A0000000 PVE012L05AUB0A2100000100100CD0A PVE012R01AUB0B2111000100100CD0A PVE012R05AUB0B211100A100100CD0 PVE012L071204RE11016 PVE12R QB1 ES 10 C21 10 PVE12R QB1 ES 10 CG 10 PVE12R QB2 ES 10 C21 10 PVE19/21 B2 PVE190L01AA10B21110001001AGCD0A PVE190L08AA10A21000001AE100CD0A PVE190L08AA10H1811000600100CD0A PVE190L08AAA0B2111000100100CD0A |
