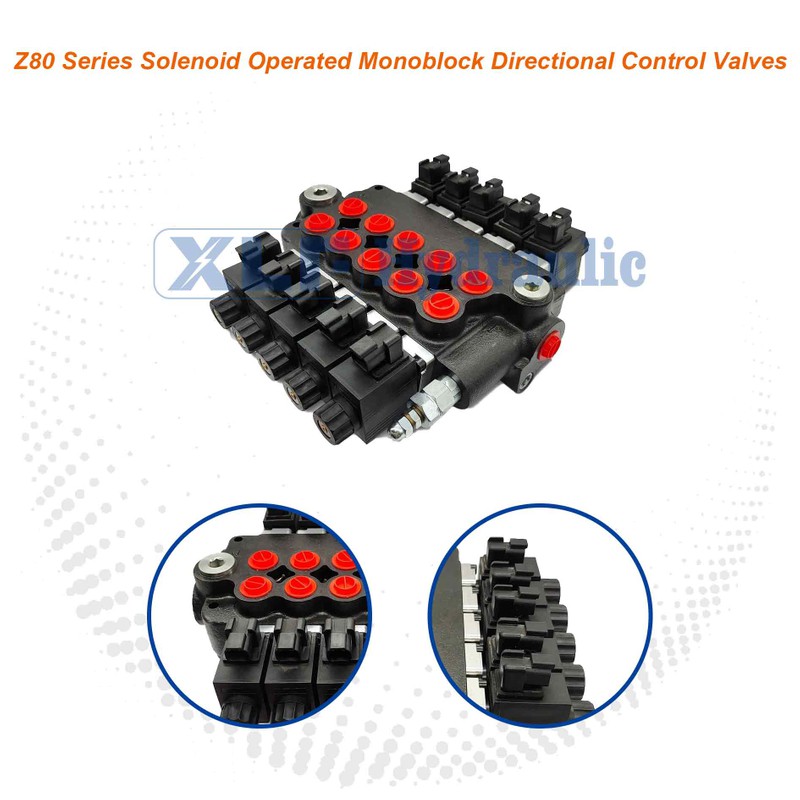

Z80 Series Hydraulic Monoblock Spool Control Valve

Z80 Series Hydraulic Monoblock Spool Control Valve

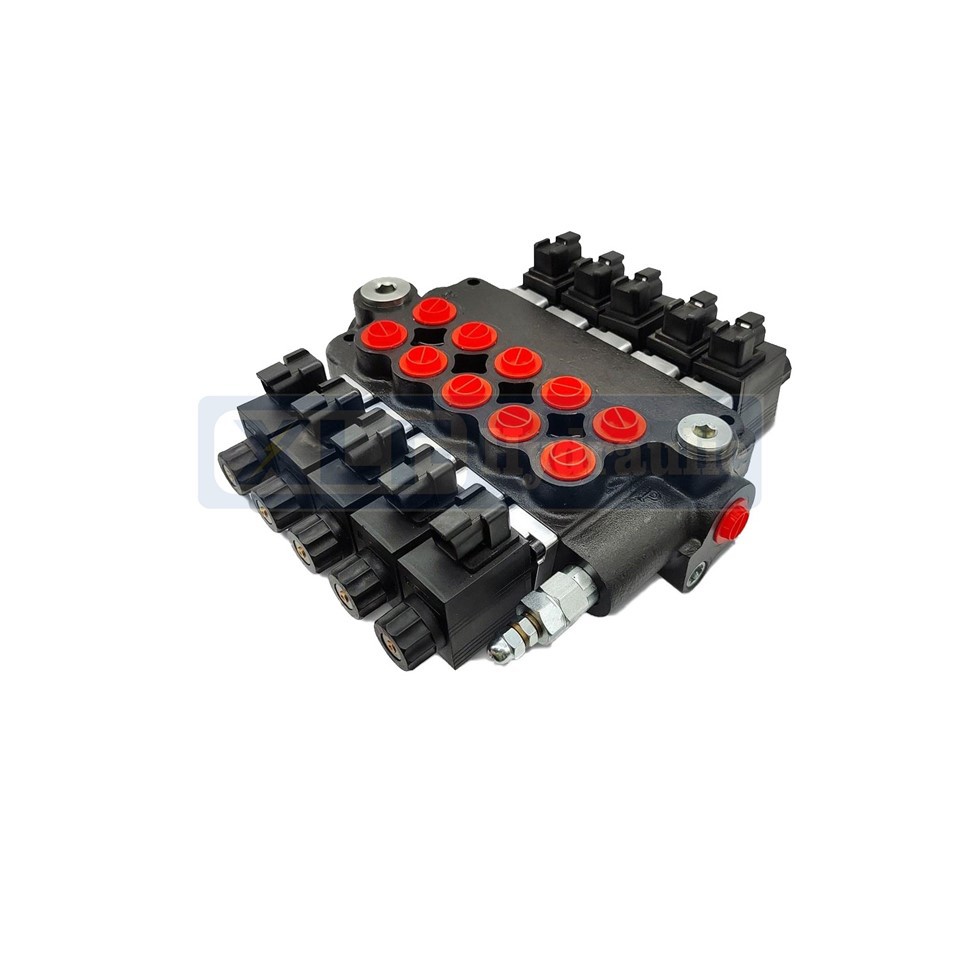

20250603_093553_128

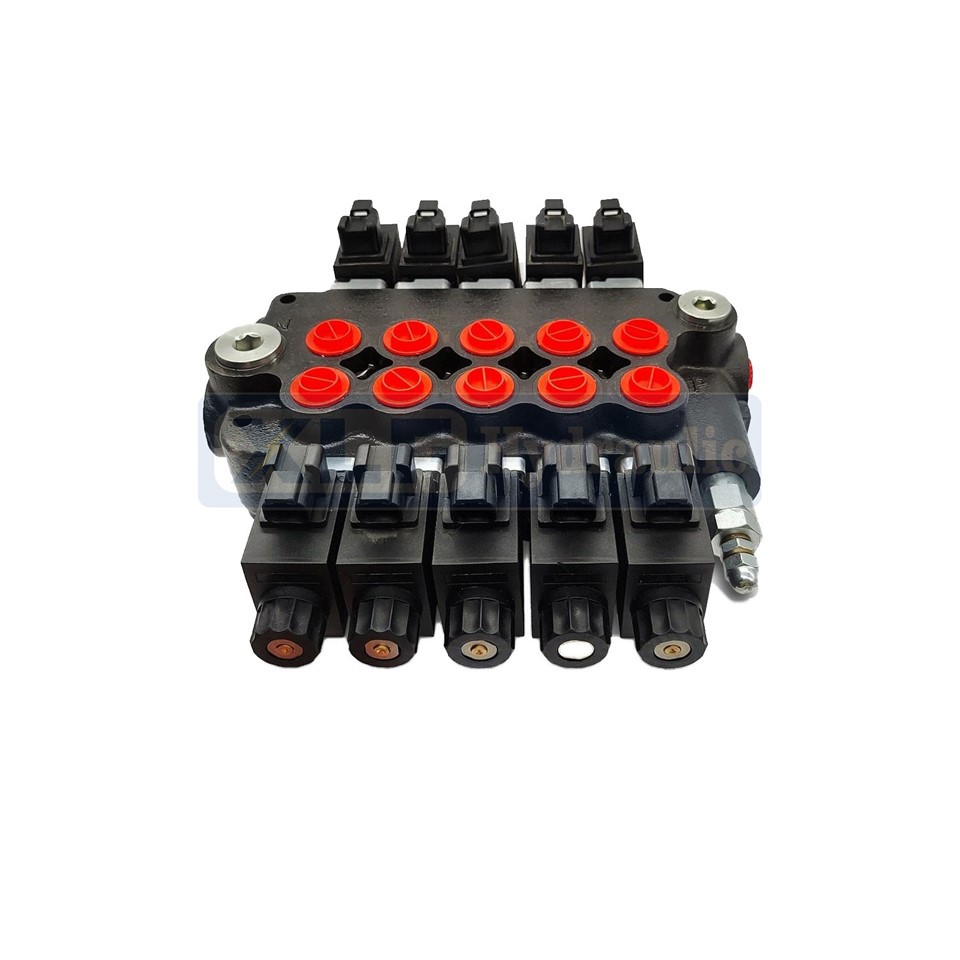

20250603_093553_129

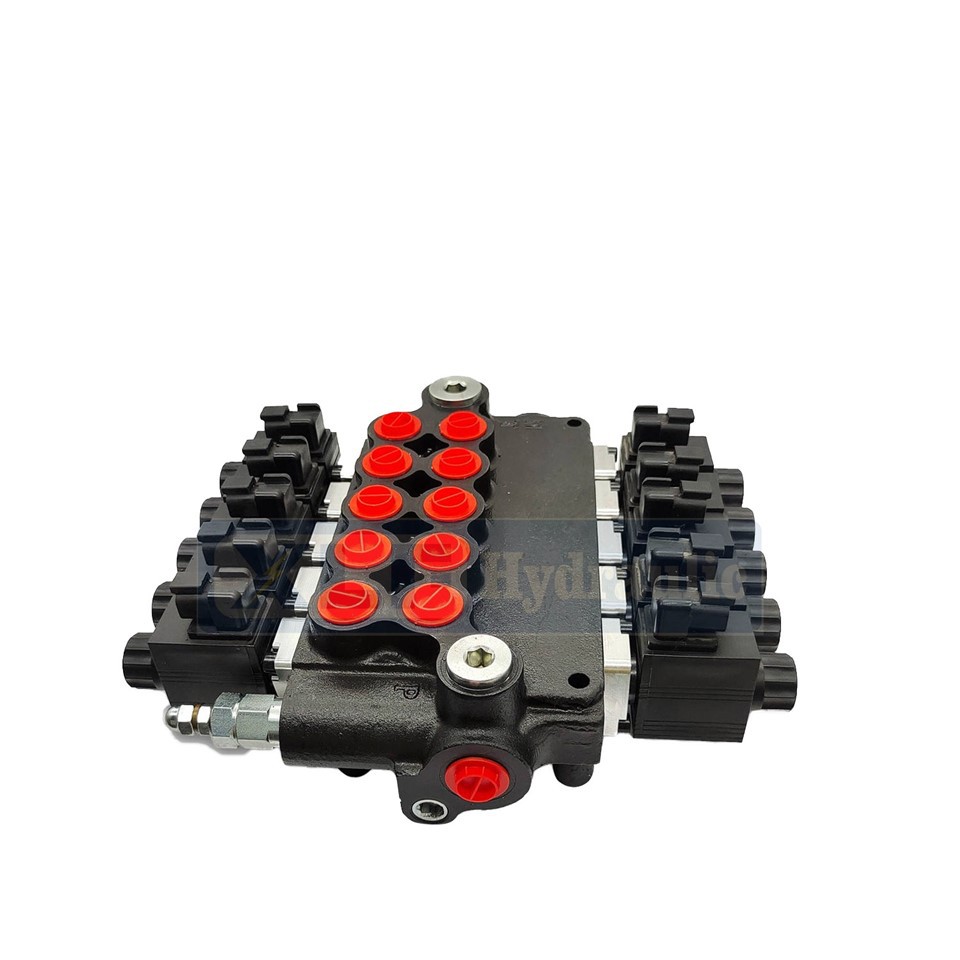

20250603_093553_130

Z80 Series Hydraulic Monoblock Spool Control Valve

Z80 series valves with middle-high pressure monoblock construction is developed based on Europe technology.

Send Inquiry

Product Introduction

Z80 Series Hydraulic Monoblock Spool Control Valve

The precise control center of industrial hydraulic systems

In industrial hydraulic systems-such as those in construction machinery, material handling equipment, and automated production lines-reliable control over hydraulic flow direction and pressure is essential. The Z80 Series Hydraulic Monoblock Spool Control Valve is engineered to meet this need, serving as a core component that translates operational commands into precise hydraulic actions. As a high-performance monoblock hydraulic control valve, it integrates the valve body, spool, and control mechanisms into a single, robust structure, eliminating leakage risks common in split-type valves and ensuring efficient signal transmission. The z80 hydraulic valve is particularly suited for scenarios requiring quick response and stable operation, such as hydraulic presses and loader lifting systems.?

Core advantage: Balancing control accuracy and structural reliability

The z80 hydraulic valve excels in industrial applications with its ability to deliver precise control while maintaining long-term reliability. Its spool is machined with micron-level precision, ensuring smooth shifting and ±2% flow control accuracy-critical for tasks like precise positioning of lifting platforms or uniform pressure application in molding machines. As a monoblock hydraulic control valve, its one-piece cast iron body provides exceptional structural integrity, withstanding continuous operating pressures of up to 315 bar and peak pressures of 400 bar without deformation, making it ideal for heavy-duty working conditions.?

Another key advantage of this z80 hydraulic valve is its resistance to harsh environments. The valve body undergoes anti-corrosion treatment, and key seals use high-temperature resistant materials, allowing it to operate stably in temperatures ranging from -20°C to +80°C-whether in dusty construction sites or humid workshops. The monoblock hydraulic control valve design also simplifies installation: its integrated structure reduces the number of connecting pipelines by 40% compared to modular valves, saving space and reducing potential leak points.

Technical features: Tailor-made for efficient hydraulic control

Smooth Spool Operation: The z80 hydraulic valve uses a low-friction spool coating and optimized oil path design, reducing shifting resistance by 30% and enabling quick response to control signals (spool shift time <50ms).?
Flexible Flow Regulation: Equipped with adjustable flow control ports, this monoblock hydraulic control valve supports stepless flow adjustment, adapting to varying load requirements-from slow, precise movements (like material stacking) to fast, high-power actions (like excavator arm lifting).?
Built-in Safety Protection: Integrates a pressure relief valve to prevent system overpressure, and a check valve to avoid reverse flow, protecting downstream hydraulic components from damage.?
Easy Maintenance: The monoblock hydraulic control valve features a modular spool design, allowing quick replacement of worn parts (such as seals or spools) without disassembling the entire valve, reducing downtime.

Parameters and character

1 Inner check valve: The check valve inside the valve body is to insure the hydraulic oil will not be returned.

2 Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.

3 Oil way: Parallel circuit, power beyond option

4 Coils, Connector ISO4400: 12VDC, 24VDC

5 Threads:P,A,B-G1/2, SAE10, T-G3/4,SAE12

6 Valve construction: Monoblock construction, 1-6 levers.

7 Precise bore honing and spool grinding results in less cross-port leakage and less wasted energy. These precise valves also allow for interchangeable spools for easy on place maintenance.
