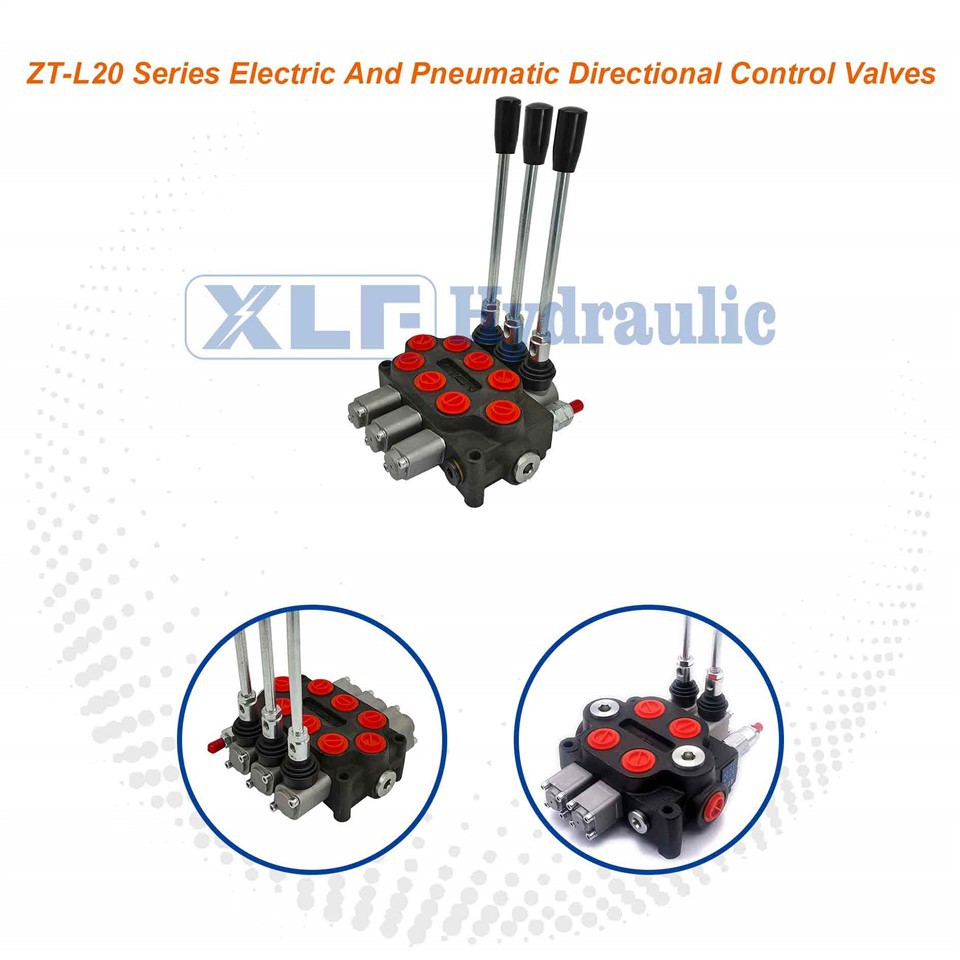

ZT-L20 Series Electric and Pneumatic Double Acting Hydraulic Valve

ZT-L20 Series Electric And Pneumatic Double Acting Hydraulic Valve

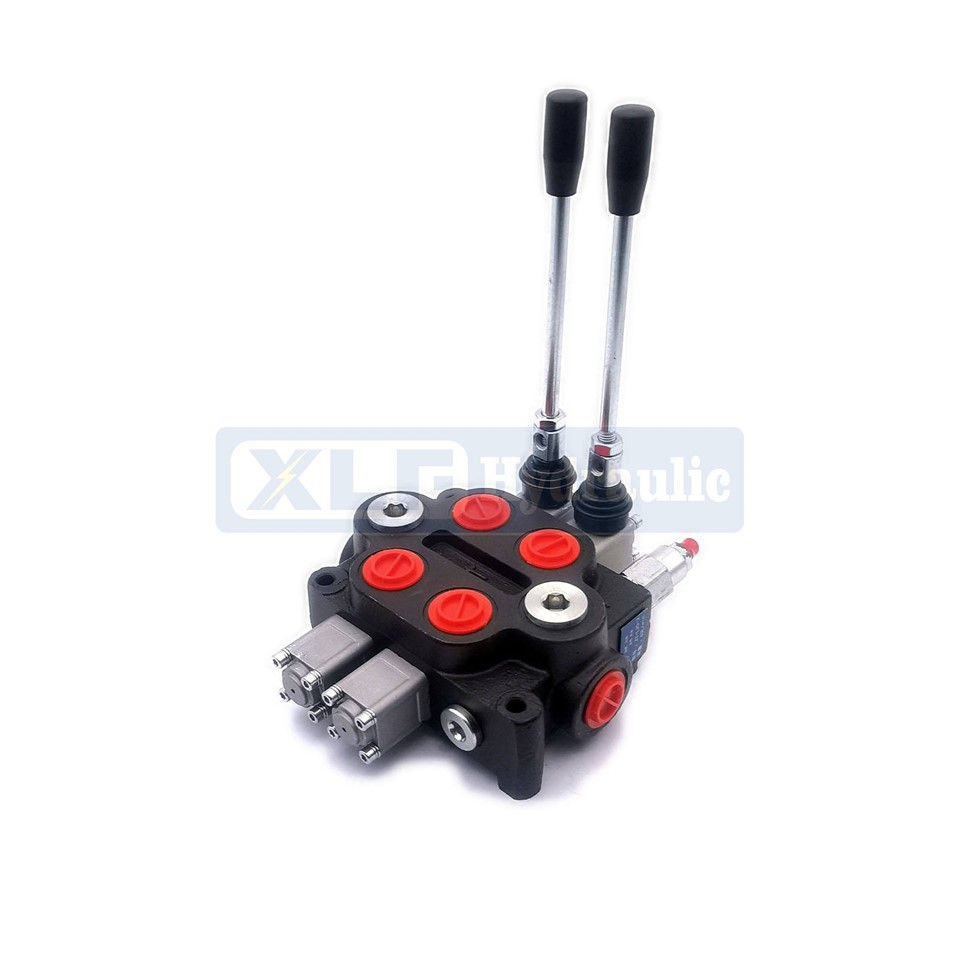

20250603_094856_154

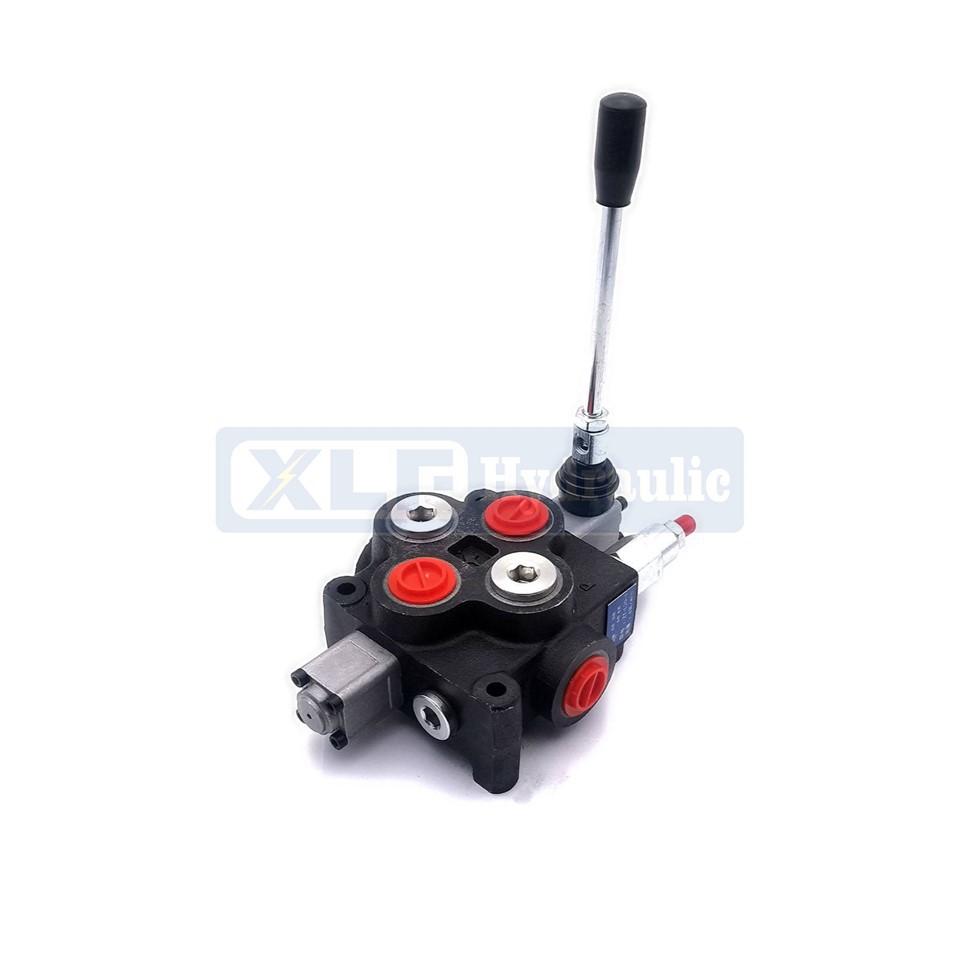

20250603_094856_155

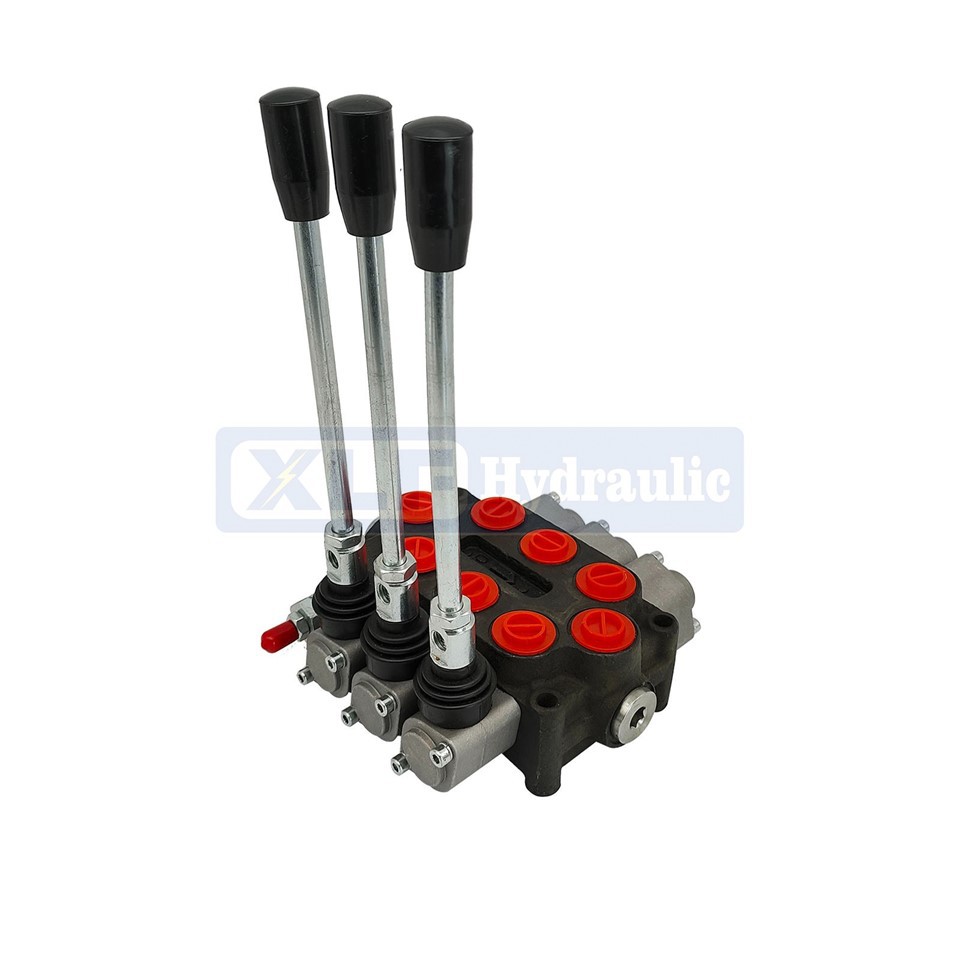

20250603_094856_156

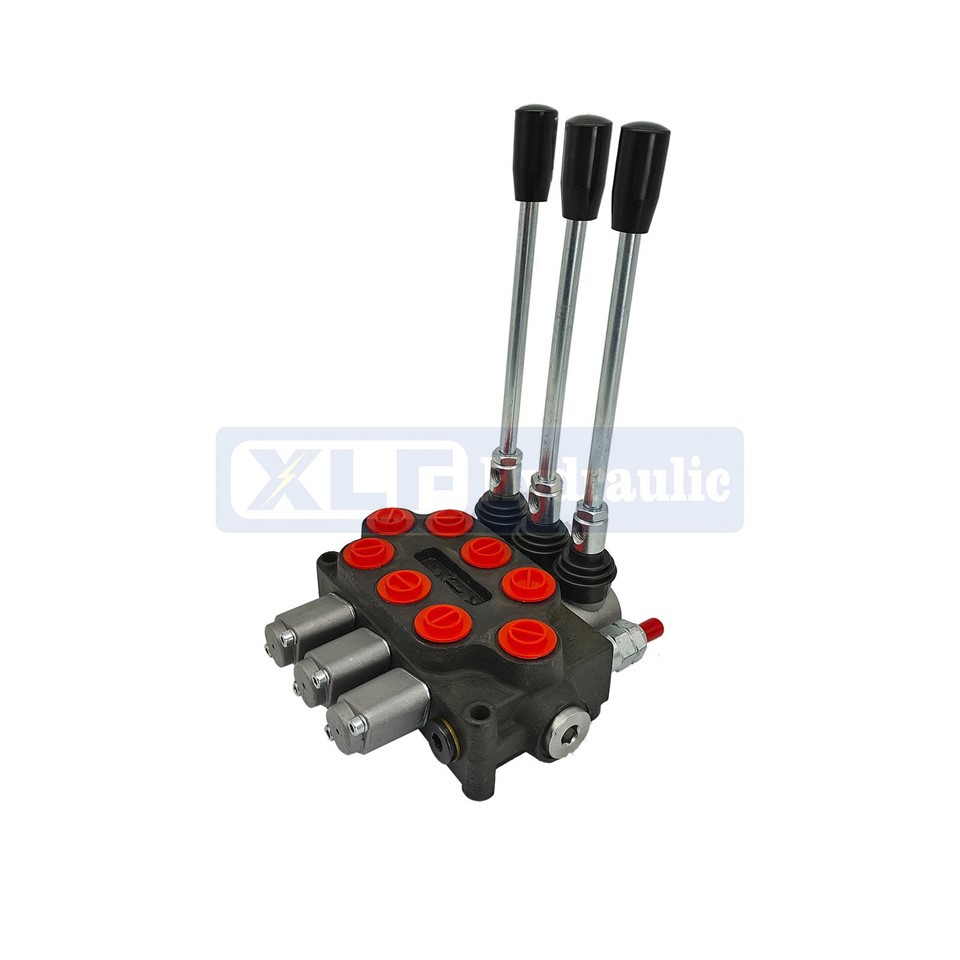

20250603_094856_157

ZT-L20 Series Electric and Pneumatic Double Acting Hydraulic Valve

Key attributes:Industry-specific attributes
Warranty:1 Year
Valve type:Directional Control Valve
Other attributes:Showroom Location
Place of Origin:Zhejiang, China
Weight:14

Send Inquiry

Product Introduction

ZT-L20 Series Electric And Pneumatic Double Acting Hydraulic Valve

The dual-control power core of the automated hydraulic system

In automated hydraulic systems-such as those in intelligent assembly lines, material sorting equipment, and precision machining tools-flexible and stable control over hydraulic actions is crucial. The ZT-L20 Series Electric And Pneumatic Double Acting Hydraulic Valve is engineered to meet this demand, serving as a bridge between control signals and hydraulic execution. As a high-performance double acting hydraulic valve, it supports bidirectional hydraulic control (both extending and retracting of cylinders), enabling precise control over the entire movement cycle of hydraulic components. The zt l20 hydraulic valve integrates electric and pneumatic control modes, combining the accuracy of electric signals with the reliability of pneumatic drives, making it ideal for scenarios requiring both automated and manual backup control.?

Core advantage: Balancing the flexibility of dual control with operational stability

The zt l20 hydraulic valve excels in automated systems with its dual-control design and stable performance. It can switch seamlessly between electric and pneumatic control-electric mode for precise, program-controlled actions (such as setting movement speed via PLC), and pneumatic mode for reliable operation in environments with unstable power supply. As a double acting hydraulic valve, it achieves smooth reversal of hydraulic flow without pressure spikes, ensuring that cylinders move stably in both directions, which is critical for tasks like precise clamping and releasing of workpieces.?

Another key advantage of this zt l20 hydraulic valve is its strong anti-interference ability. The electric control module is equipped with a shielding design to resist electromagnetic interference from surrounding equipment, while the pneumatic control part uses a high-sensitivity valve core to ensure stable operation even with slight air pressure fluctuations. The double acting hydraulic valve structure also simplifies pipeline layout: its integrated inlet and outlet ports reduce connecting hoses by 30% compared to split valves, saving installation space and reducing leakage risks.?

Technical features: Tailor-made for dual-control hydraulic action

Dual-Control Flexibility: The zt l20 hydraulic valve supports both electric (via solenoid) and pneumatic (via air pressure) control, allowing quick switching according to on-site needs-electric for automated production and pneumatic for emergency manual operation.?
Smooth Double Acting: As a double acting hydraulic valve, it uses an optimized oil path design to achieve stable pressure output in both forward and reverse directions, with pressure fluctuation ≤3% to avoid jitter during cylinder movement.?
High Compatibility: With standard SAE interface sizes, it can be seamlessly connected to mainstream hydraulic cylinders and control systems, reducing the difficulty of system integration.?
Durable Construction: The valve body is made of high-strength cast iron with anti-corrosion treatment, and key seals use high-temperature resistant materials, ensuring stable operation in temperatures ranging from -15°C to +80°C.

Product Description

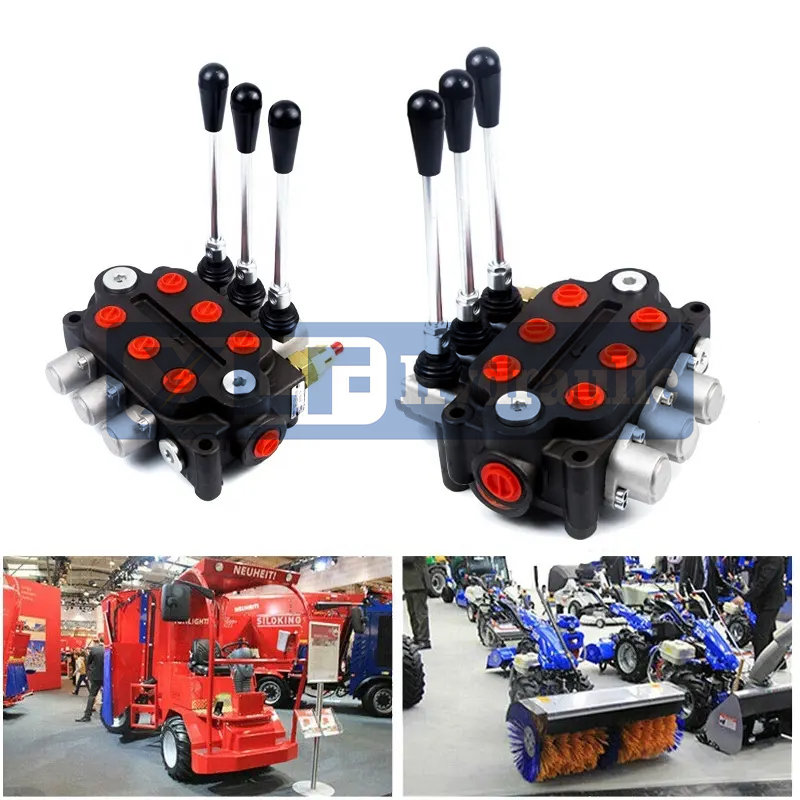

ZT-L20 electropneumatic control series multi-way valve is improved on the basis of zt-l20 air control series. It is mainly to change the control mechanism of air control reversing valve, in the air control on the basis of the increase of electropneumatic control, and according to customer demand, the installation of wireless remote control, can better achieve remote control. The valve is widely used in construction machinery, sanitation machinery, mining machinery and other machinery hydraulic system.
