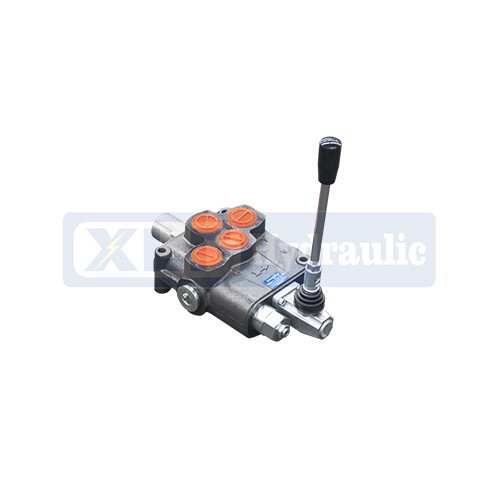

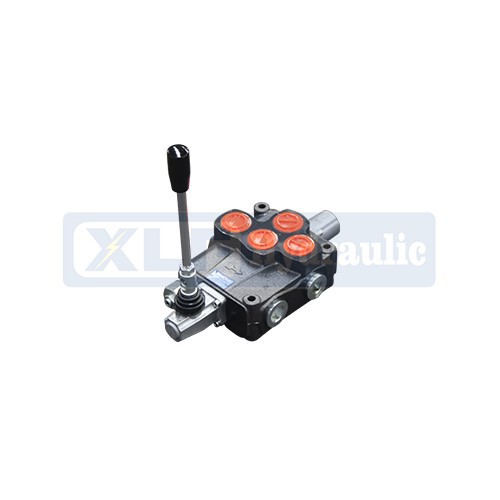

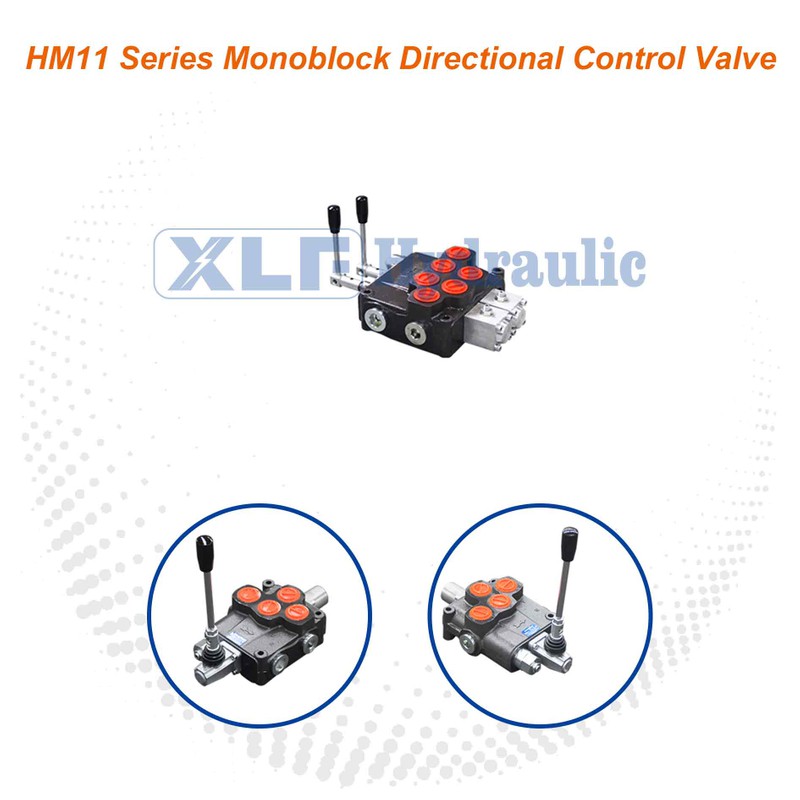

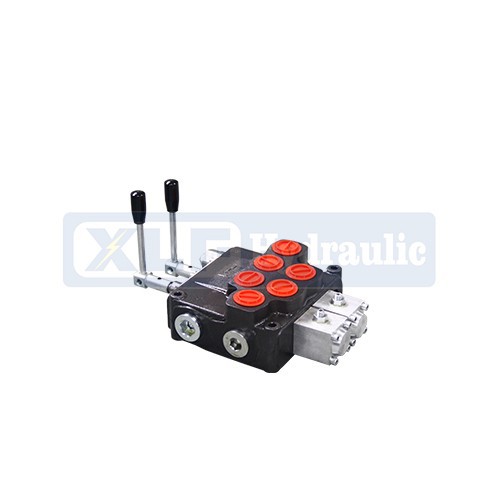

HM11 Series Hydraulic Monoblock Directional Control Valve
Product Description
As for the XLF-HM11 Series Monoblock Directional Control Valve, these are hydraulic components designed to control the direction, pressure, and flow of hydraulic fluids in a system. They are typically used in applications where precise control of hydraulic actuators is required.
Key Features of XLF-HM11 Series Monoblock Directional Control Valves:
Compact Design: Monoblock valves are known for their compact size, which saves space in hydraulic systems.
Ease of Installation: These valves are designed for easy installation and integration into existing hydraulic circuits.
Reliability: Built to withstand the pressures and demands of industrial applications, ensuring reliable operation.
Versatility: Suitable for a wide range of hydraulic systems, including those in construction, agricultural, and material handling equipment.
HM11 series integral valve has introduced European advanced technology, with compact structure, flow rate of 120L/min, light weight, high pressure resistance. The valve uses parallel oil circuit, designed with a pressure outlet and other hydraulic components connected to provide power source. The valve is widely used in construction machinery, sanitation machinery, oil field equipment, mining machinery and other machinery hydraulic system.
Parameters and character
Simple, compact and heavy duty designed monoblock from 1 to 3 sections for open and closed center hydraulic systems.
1 Fitted with a direct or pilot operated main pressure relief valve.
2 Parallel circuit.
3 Optional carry-over port.
4 Diameter 25 mm - 0.98 in interchangeable spools.
5 A wide variety of service port valves.
6 Available manual, pneumatic, electro-pneumatic, hydraulic and electro-hydraulic spool control kits.
Parameters
|
Nom.Pressure (MPa) |
Max.Pressure (MPa) |
Nom.Flow rate (L/min) |
Max.Flow rate (L/min) |
Back Pressure (MPa) |
Hydraulic Oil |
||
|
Tem.rang (℃) |
Visc.rang (mm2/S) |
Filtrating Accuracy (μm) |
|||||
|
20 |
31.5 |
120 |
160 |
≤1 |
-20～+80 |
10～400 |
≤10 |
Port Size
|
MAIN PORTS |
BSP |
UN-UNF |
METRIC |
|
Inlet P |
G3/4,G1 |
7/8-14 (SAE 10) |
1 5/16-12 UN-2B (SAE 16) |
|
Ports A and B |
G3/4,G1 |
3/4-16 (SAE 8) |
1 1/16-12 UN-2B (SAE 12) |
|
Outlet T |
G1 |
7/8-14 (SAE 10) |
1 5/16-12 UN-2B (SAE 16) |
|
Carry-over C |
G1 |
7/8-14 (SAE 10) |
1 5/16-12 UN-2B (SAE 16) |
Other special port size, please contact with your sales representative.
